Customized service:we can produce the smd led according to the parameters and package size

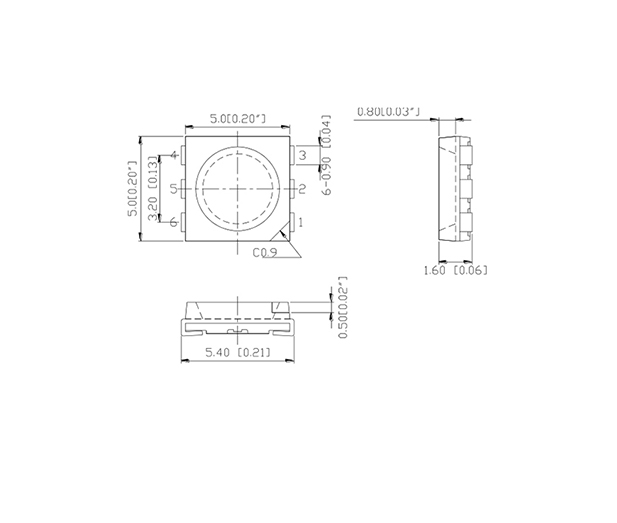

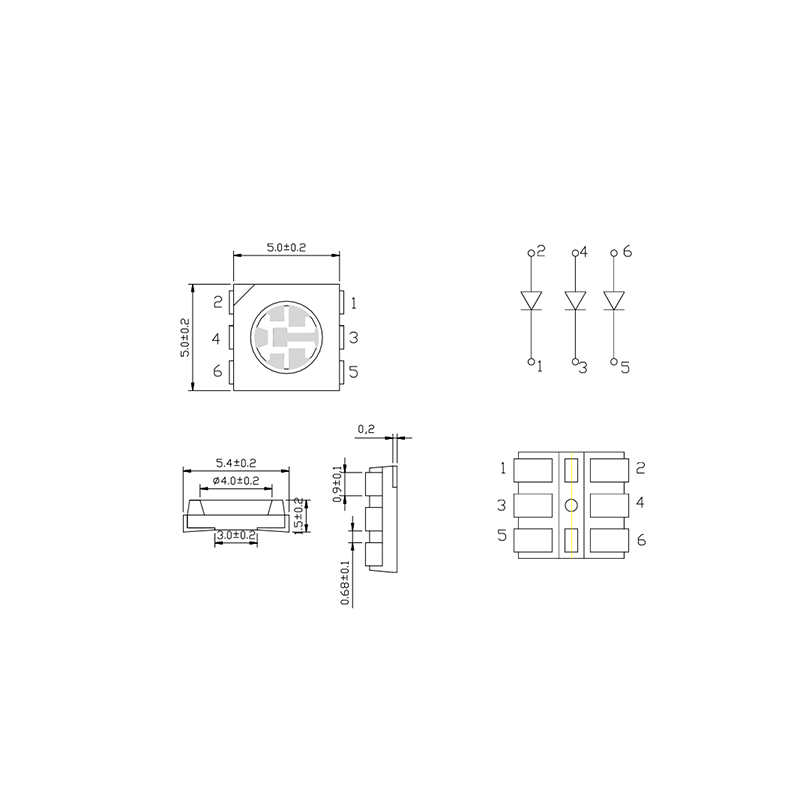

5.0mmx5.0mm SMD LED,1.8mm thickness
0.2W power consumption
Wide view angle
Long life
High reliablity
Energy-saving
High brightness
RoHS Compliant
Electro optical characteristics(Ta=25°C)
| Type | Part No | Emitted color | Forward voltage(Vf) | Luminous intensity(LM) | Wavelengthe(nm)/CCT(K) | Current(Ma) | Power(w) | |||
| Min | Max | Min | Max | Min | Max | |||||
5050 | MH-5050QRC | Red | 1.8 | 2.4 | 5 | 7 | 620 | 630 | 60 | 0.2 |
| 5050 | MH-5050QOC | Orange | 1.8 | 2.4 | 2 | 4 | 600 | 610 | 60 | 0.2 |
| 5050 | MH-5050QYC | Yellow | 1.8 | 2.4 | 2 | 4 | 585 | 595 | 60 | 0.2 |
| 5050 | MH-5050QGC | Green | 2.8 | 3.4 | 15 | 20 | 520 | 530 | 60 | 0.2 |
| 5050 | MH-5050QBC | Blue | 2.8 | 3.4 | 4 | 6 | 460 | 470 | 60 | 0.2 |
| 5050 | MH-5050QPC | Pink | 3.0 | 3.4 | 2 | 4 | 455 | 460 | 60 | 0.2 |
| 5050 | MH-5050WWC | Warm white | 3.0 | 3.4 | 22 | 24 | 2000 | 3000 | 60 | 0.2 |
| 5050 | MH-5050NWC | Natural white | 2.8 | 3.4 | 22 | 24 | 5000 | 6500 | 60 | 0.2 |
| 5050 | MH-5050CWC | Cool white | 2.8 | 3.4 | 20 | 22 | 8000 | 20000 | 60 | 0.2 |
